Mathematica integration with Microsoft Power BI

Since 2018 Microsoft Power BI has the ability to connect with R and python. Now you can use Mathematica to create visualization inside Power BI or send data from Mathematica to Power BI. This repository consists of two code:

• viz_server.nb to use Mathematica visualization inside Power BI
• data_server.nb to send Mathematica data to Power BI

How to send Mathematica Plots/Visualization to Microsoft Power BI

Power BI supports python visualization made by matplotlib, this solution will send Mathematica code from Power BI, receive the result as an image, and store it inside a matplotlib object.

How to send Mathematica data to Microsoft Power BI

Power BI supports many data sources, we could either use python or a web interface. This solution will deploy a local server that redirects to your data as JSON.

Requirements:

• Python
• Python matplotlib module
• Mathematica

Warning: Since Mathematica code uses the ToExpression function which can easily be manipulated to harm your computer, only run and open script files that you trust.

Setup

Before starting, make sure the python Power BI uses, is the correct one by going to File > Options and Settings > Options > Python Scripting

Either download viz_server.nb or copy the code and evaluate them. Now you'll have a local server running on port 38000 (you can change it to any number you like as long as it's accessible)

Inside Power BI insert a new Python Visual.

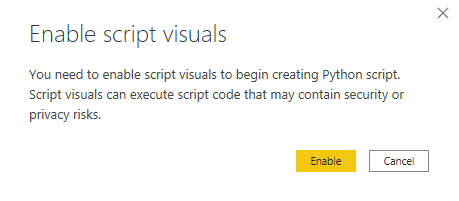

If asks you to enable Enable script visuals, click Enable.

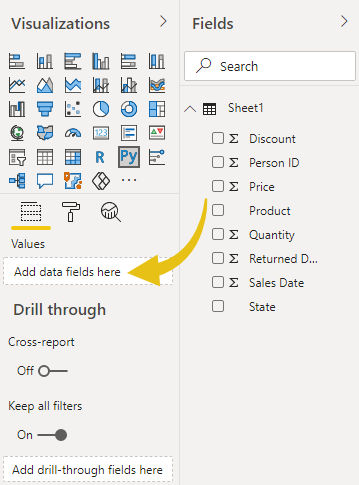

You should also provide at least one Field to be able to write python code so here I'll import a sample data file and drag Price Field to Python Visual's Values section. If you need any field in your calculation, drag them into Values section.

In the Python Script Editor, paste these codes:

import io
import base64
import matplotlib.pyplot as plt
import json
from urllib import request

# Change this section
PORT = 38000

mathematica_code =  'ListLinePlot[Flatten[arg1]]'

pdata = json.dumps({'script':mathematica_code,'data':{'arg1':dataset.values.tolist()}})
# end section

req = request.Request(f'http://localhost:{PORT}/evaluate',data= pdata.encode('utf-8'),method='POST')
res = request.urlopen(req).read()
result = io.BytesIO(base64.b64decode(res))

img = plt.imread(result)
img_dim = img.shape


imgplot = plt.imshow(img,extent=[0,img_dim[1],0,img_dim[0]])
plt.axis('scaled')
plt.axis('off')
plt.tight_layout()
plt.show()

Mathematica will receive the request and will evaluate script with the data provided in data (if is available). You can use any variable name, here we used arg1 therefore I should use arg1 in the Mathematica too.

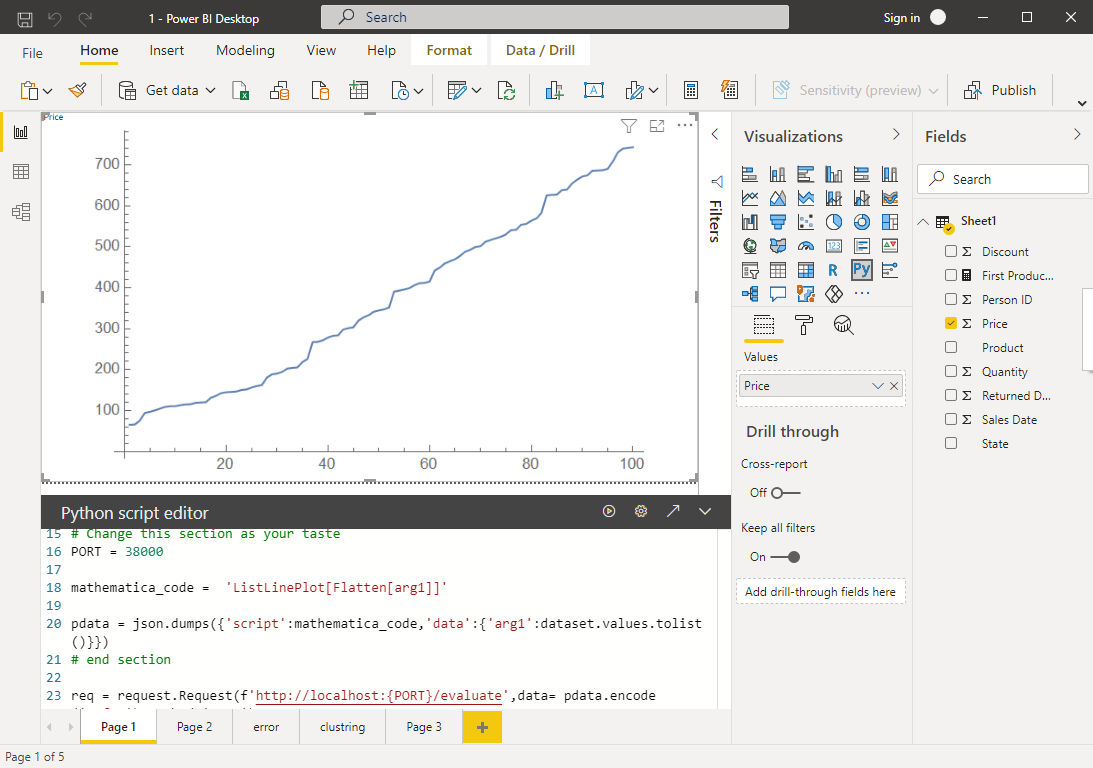

The result of our sample code is:

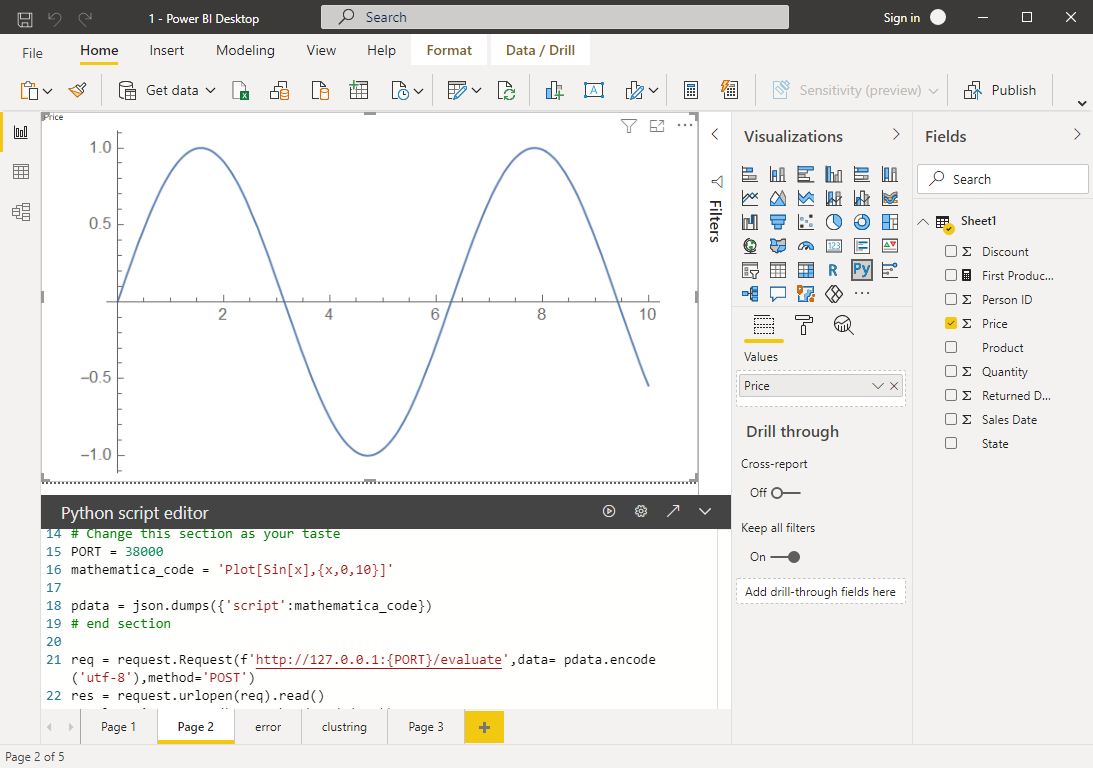

You could use only the script part without providing any data:

Example 2 - Clustering

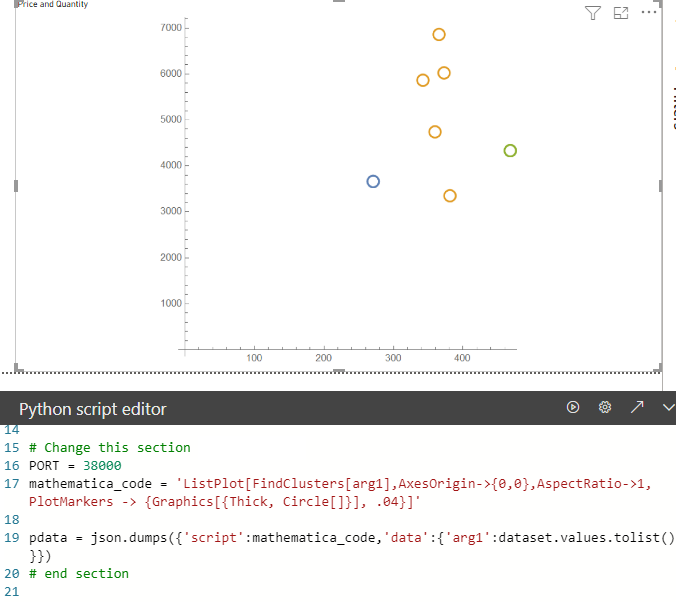

Use mathematica FindClusters to find clusters for price and quantity fields:

Possible Issues

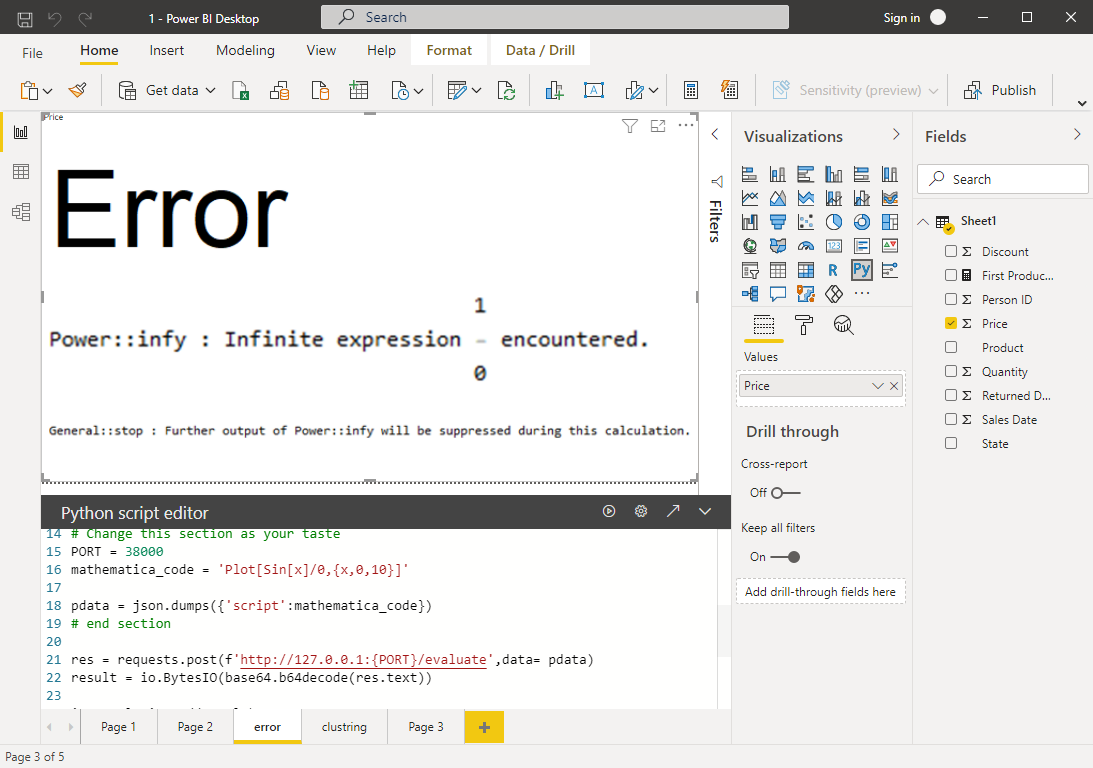

If your script failed to evaluate, error messages will be sent as images to Power BI. Here you see the result of plotting Sin[x]/0:

Send Mathematica data to Microsoft Power BI

Requirements:

• Python
• Python matplotlib module
• Mathematica
• Enabling Json Table Inference in Power BI preview features

Setup

We are using the web interface to load a JSON table, you need to enable a preview feature to load JSON data as a table by going to File > Options and Settings > Options > Preview features, enable Json Table Inference.

Either download or copy the data_server.nb code and evaluate them. Use the following function to create a JSON data source:

sendToPowerBI[data, headers]

Now you have a server redirecting any URL to your data as JSON with column names in headers on the default port (39000)

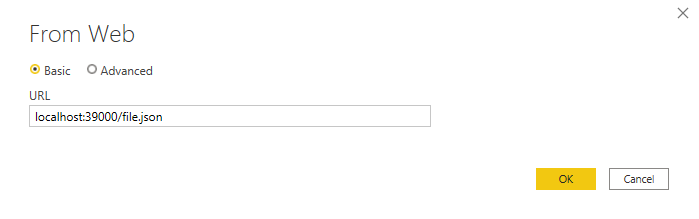

In Power BI, add new data source Web, type http://localhost:39000/file.json or http://127.0.0.1:39000/file.json and press OK:

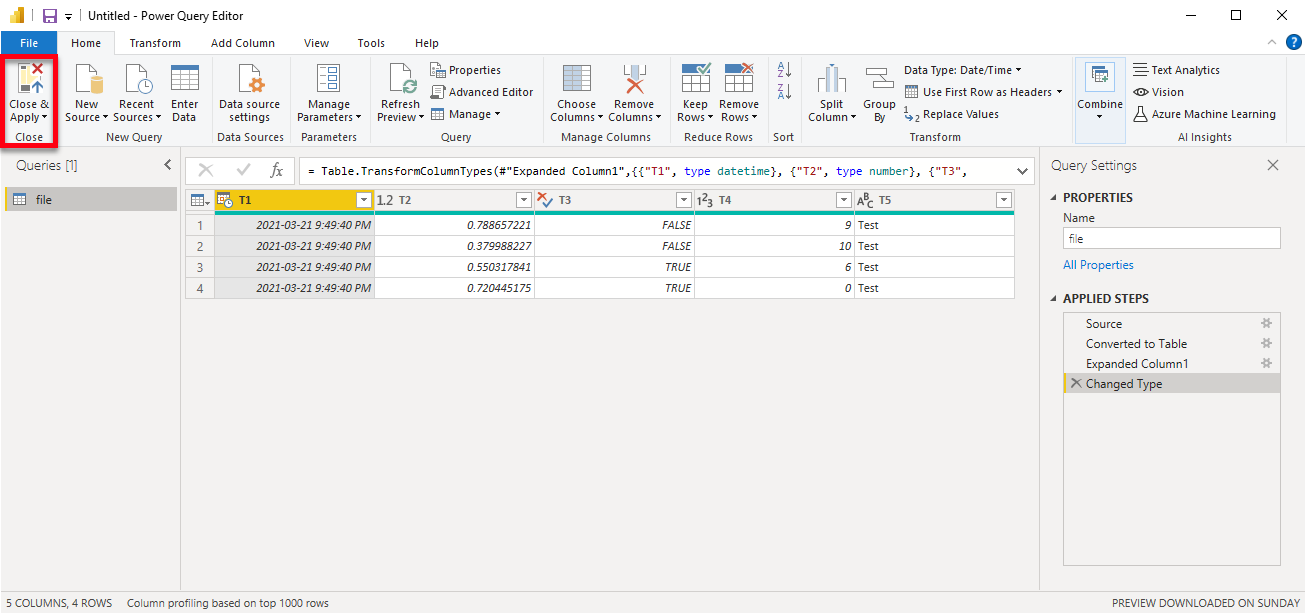

In the Power Query Editor you can preview your data, here data consists of 5 columns with different types (Date, Float, Boolean, Integer, String):

Click Close & Apply

Keep in mind that your data should be a 2-dimensional list in Mathematica.
